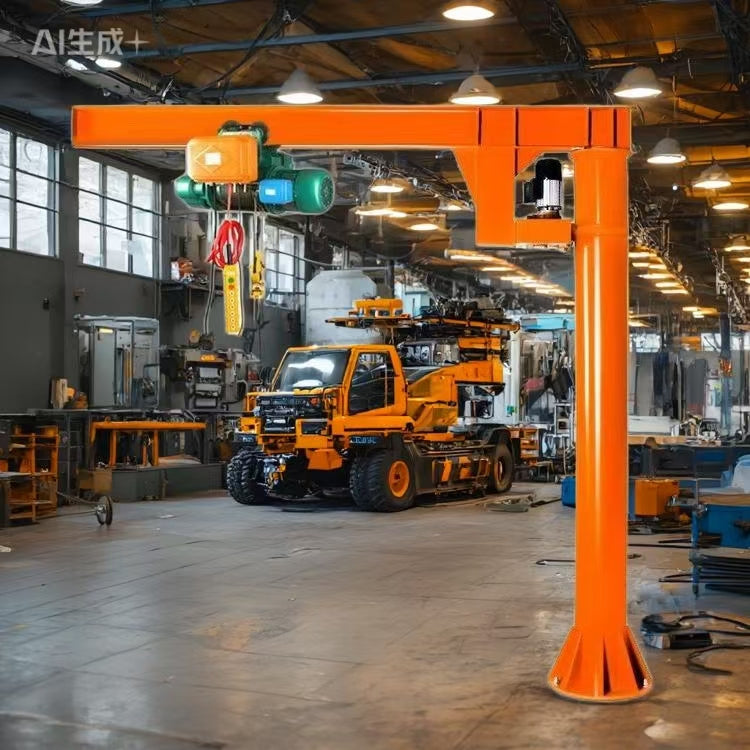

Column-mounted cantilever crane, single-arm crane, wall-mounted crane, swivel crane. 1 ton, 2 tons, 3 tons, 5 tons. Electrically rotating 360 degrees, 180 degrees.
Column-mounted cantilever crane, single-arm crane, wall-mounted crane, swivel crane. 1 ton, 2 tons, 3 tons, 5 tons. Electrically rotating 360 degrees, 180 degrees.
$2,400.00
$2,400.00

Description

Item 2
Electric cantilever crane maximum load:2 ton Total height of the machine:5m Total length of the machine:5m The maximum height is 3.5 meters.
Electric chain hoist Chain length: 4 meters Lifting speed: 6.8 meters; Running speed: 11 meters Lifting motor: 3.0 Kw, Operating motor: 0.4 Kw
control mode wireless remote control
colour customize
Rotation method electric
rotation angle 0 to 360
Column material Pipe diameter 530mm
Crossbar material 250mm I-beam steel and 150mm x 150mm square tube
Production technical plan The column of the jib crane is fixed to the ground using either a pre‑cast concrete foundation or chemical anchors, depending on the on‑site conditions. The column and the rotating arm of the single‑arm crane are connected by a rotating shaft. During operation, the lifting and lowering are controlled electrically, while the rotation of the arm is done manually. The jib crane operates on a 380V power supply.
Equipment protection method The hoist has upper and lower limit switches. The hoist also has left and right (polyurethane contact points)
operating mode

The electric hoist on the crossbeam of the cantilever crane ascends and descends, and the crossbeam rotates left and right. It is operated by a wireless remote control.

Item 1
Electric cantilever crane maximum load:1 ton Total height of the machine:4m Total length of the machine:4m The maximum height is 3 meters.
Electric chain hoist Chain length: 4 meters Lifting speed: 6.8 meters; Running speed: 11 meters Lifting motor: 1.5 Kw, Operating motor: 0.4 Kw
control mode wireless remote control
colour customize
Rotation method electric
rotation angle 0 to 360
Column material Pipe diameter 377mm
Crossbar material 200mm I-beam steel and 120mm x 120mm square tube
Production technical plan The column of the jib crane is fixed to the ground using either a pre‑cast concrete foundation or chemical anchors, depending on the on‑site conditions. The column and the rotating arm of the single‑arm crane are connected by a rotating shaft. During operation, the lifting and lowering are controlled electrically, while the rotation of the arm is done manually. The jib crane operates on a 380V power supply.
Equipment protection method The hoist has upper and lower limit switches. The hoist also has left and right (polyurethane contact points)
operating mode The electric hoist on the crossbeam of the cantilever crane ascends and descends, and the crossbeam rotates left and right. It is operated by a wireless remote control.



Procurement Instructions

1. Product Confirmation: Confirm equipment model, technical parameters and quantity before order placement. Detailed requirements are needed for customized products, confirmed in writing by both parties; sample testing is available for bulk orders.

2. Pricing & Payment: 100% advance payment is accepted by default. For large orders, payment terms will be decided on a case-by-case basis.

3. Delivery & Shipping: Packed in standard export wooden cases. Delivery time varies by the receiving address. We will track logistics status throughout and ensure the goods reach the buyer's designated address as soon as possible.

4. Installation & Training: The seller will provide installation and operation videos or manuals to assist the buyer with equipment installation and operation.

5. Dispute Resolution: Friendly negotiation is the first priority.
